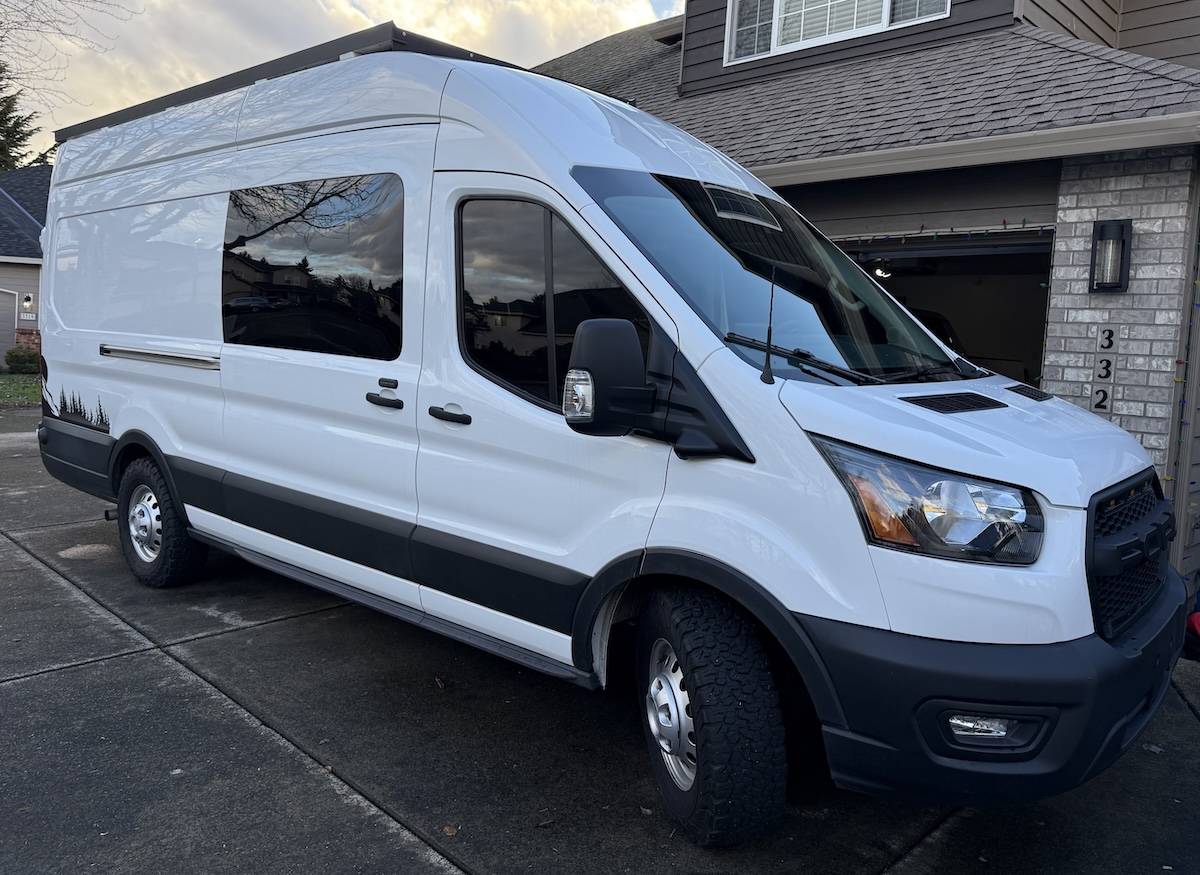

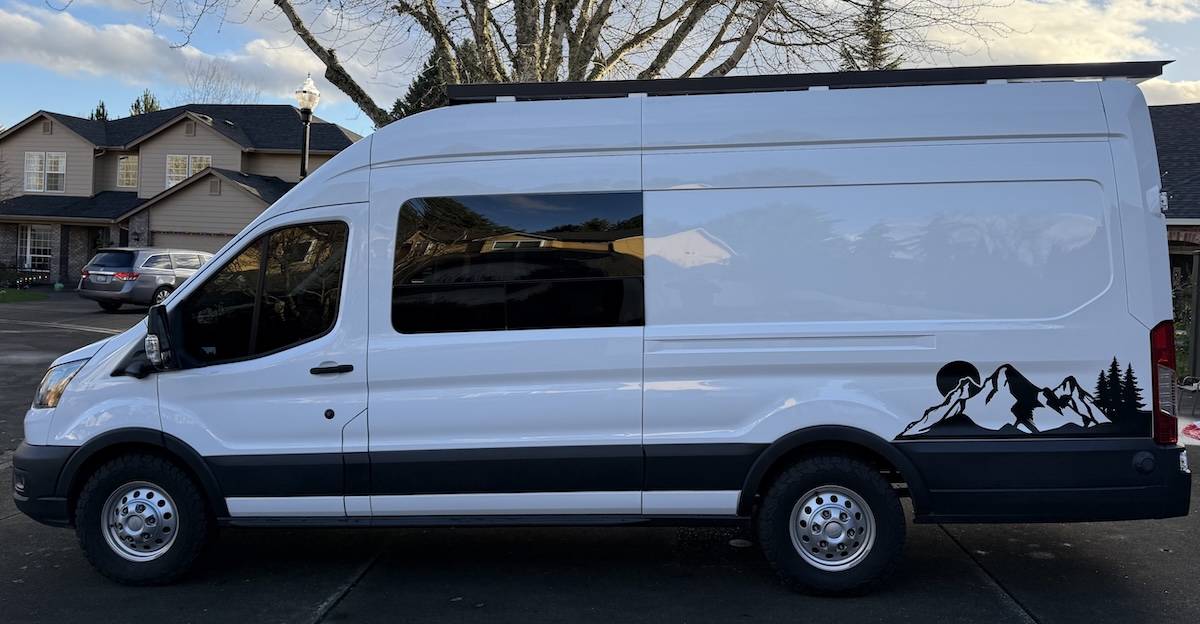

This 2023 Ford Transit T-350HD SRW is a rare gem: a low-mileage, AWD, high-capacity van with a professional custom build. It’s quieter than a modern SUV, packed with cutting-edge tech, and designed for off-grid adventures or heavy-duty tasks. With a 4-person seating/sleeping capacity, indoor/outdoor shower, and garage space for a motorcycle, it’s a one-of-a-kind rig that saves you thousands compared to building a similar van from scratch. We went the Transit because it has the highest interior height available, best tow package and performance by far, and it uses the proven highest power gas eco boost 3.5L twin turbo engine. Unlike the German counterparts this means reliability with the option to stop into any Ford dealership for service.
This is a rare 2023 Ford Transit T-350HD Single Rear Wheel (SRW) with All-Wheel Drive (AWD) and a 9,950 GVWR – the highest-capacity SRW option available. Powered by a 3.5L EcoBoost Twin-Turbo V6, we built this van to be a high-tech, comfortable, do-anything vehicle. Just rolled over 10,000 miles, $10,000 in factory upgrades, and a meticulous custom conversion, this van originally retailed for ~$70,000 before the build. Perfect for van life, overlanding, or hauling toys like a motorcycle, this Transit is ready for your next adventure.
Condition & History
We originally built for rental through our company. However, we grew emotionally attached and decided it was too nice to rent out. Due to a change in plans and limited use (hence the low mileage), we did sell our baby. Full build photos from day one are available to the buyer.
This van is complete and in pristine condition. We built this van in a modular way. This design not only maximizes space but also allows easy removal of panels for future upgrades. If you don’t need the second upper bed it could easily be removed, even further rails removed and holes covered. Recent Mobil 1 synthetic oil change, new 2024 BFGoodrich tires, and a clean title in hand. I purchased new for this build, it’s from a non-smoking, non-shedding pet household and remains under factory warranty:
- 3-Year/36,000-Mile Bumper-to-Bumper
- 5-Year/60,000-Mile Powertrain
- 5-Year/60,000-Mile Roadside Assistance
Specifications
- VIN: 1FTBF8XGXPKA41842
- Engine: 3.5L EcoBoost Twin-Turbo V6 DOHC
- Drivetrain: All-Wheel Drive (AWD)
- Gross Vehicle Weight Rating: 9,950 lbs (highest-capacity SRW)
- Original MSRP: ~$70,000 (pre-build)
Factory Features
- Performance & Towing:
- HD Trailer Tow Package with integrated trailer brake controller (6,400 lb tow capacity)
- Dual batteries for enhanced reliability
- 31-gallon fuel tank for extended range
- Technology:
- SYNC 4 with 12” HD touchscreen, Navigation, Apple CarPlay, Android Auto
- 360-degree camera system
- Adaptive Cruise Control (IACC)
- Blind Spot Assist with parking sensors
- 6-speaker audio system (4 front, 2 rear)
- Convenience:
- Remote Start with 4 key fobs/remotes
- Keyless entry pad
- 253-degree rear door opening for easy access
Custom Build Highlights
Built with precision by myself, an L1 ASE Master Technician, this van maximizes space, comfort, and functionality. It is designed to seat 4 and sleep 4. It can haul a motorcycle in a 37” wide garage space. It’s a rare find in the van life market.
- Sleeping & Seating:

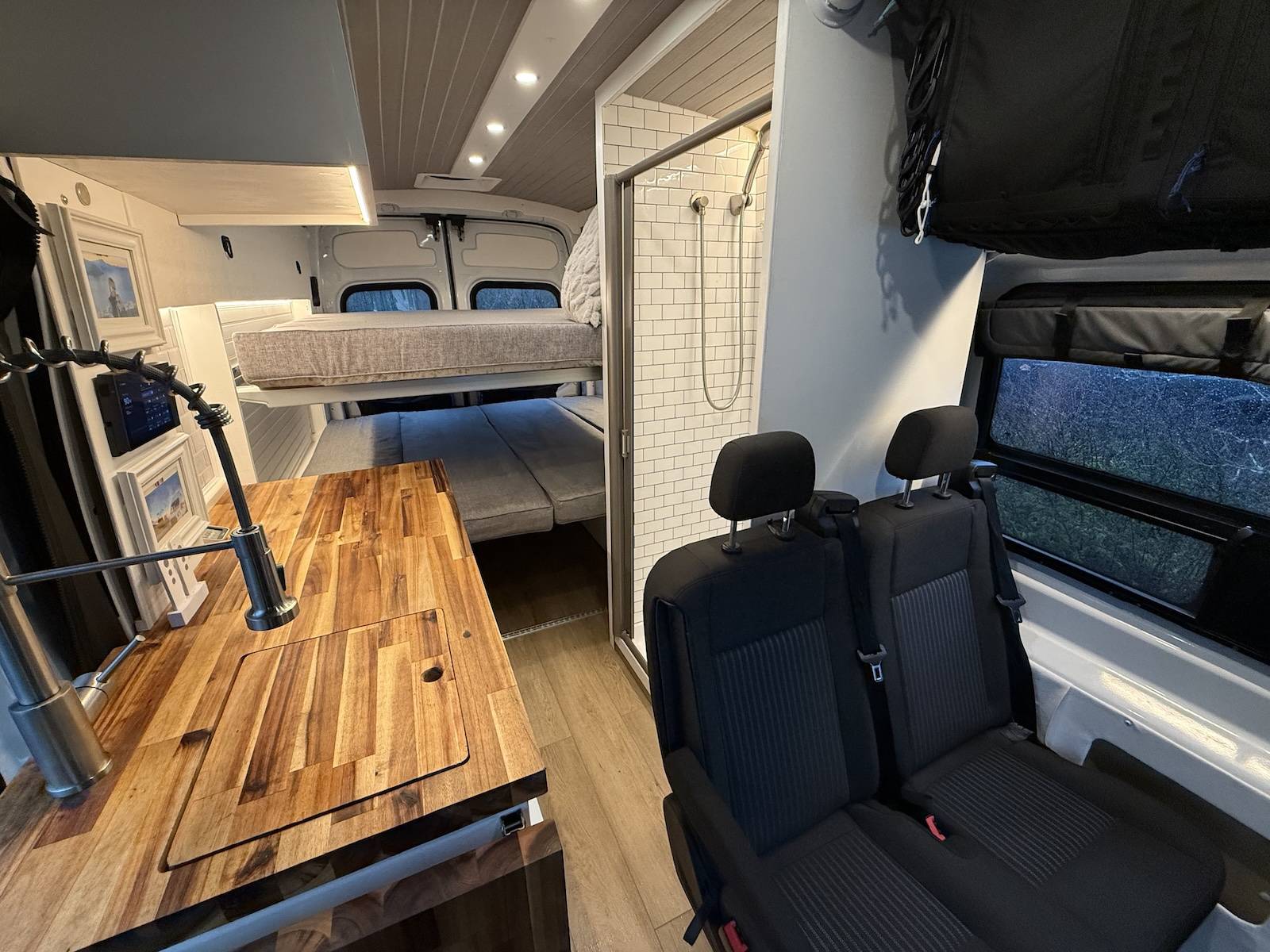

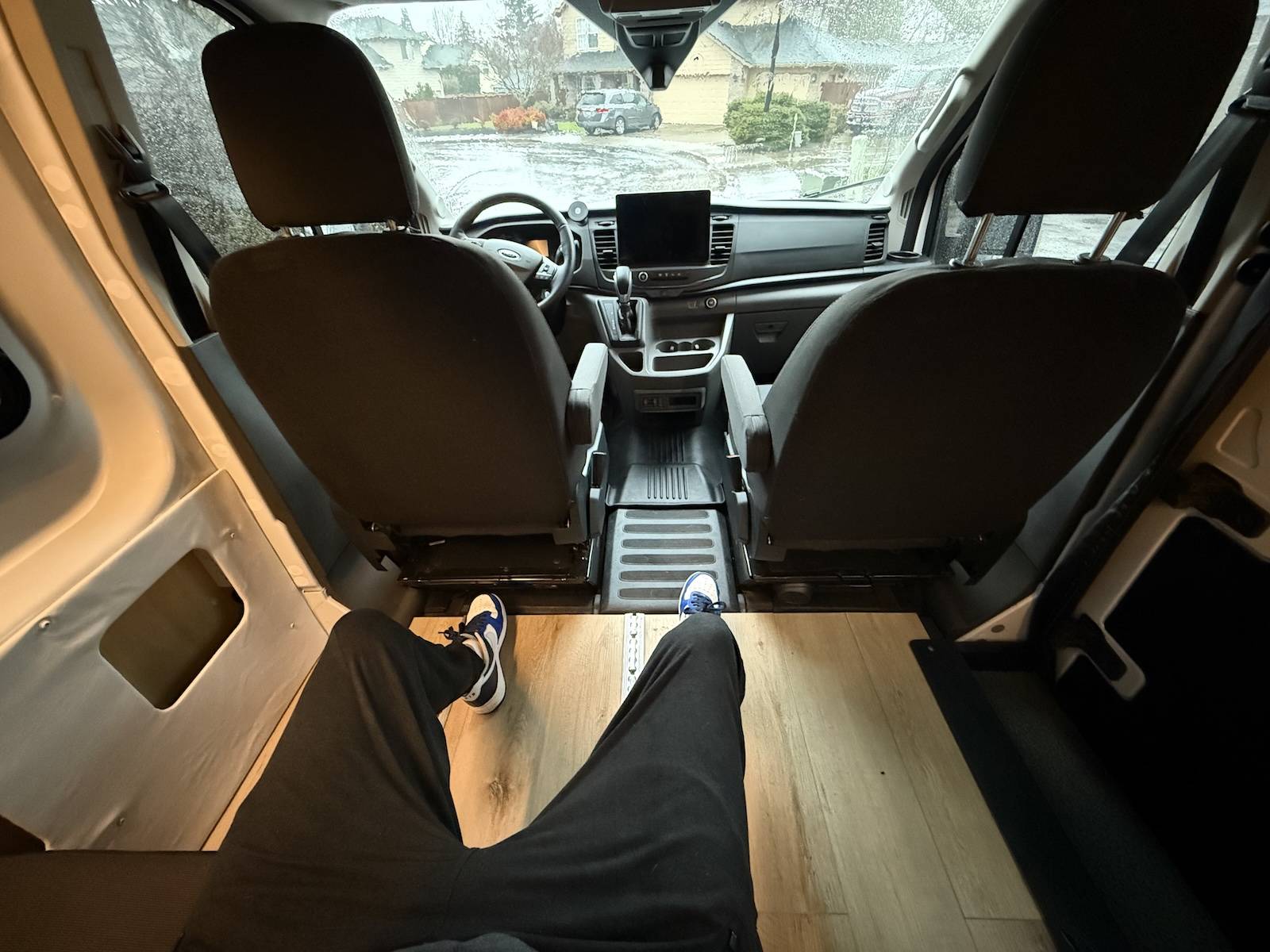

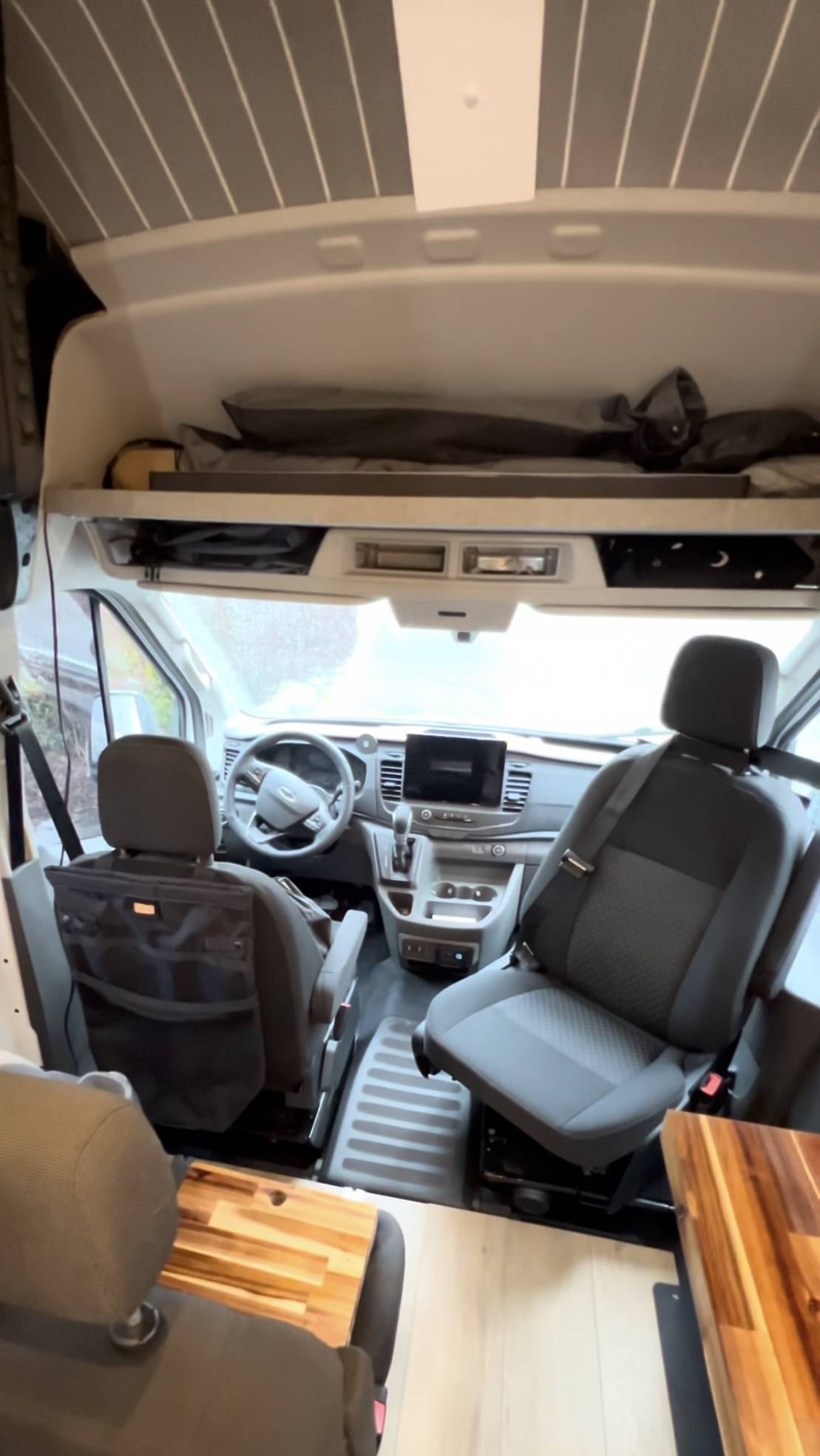

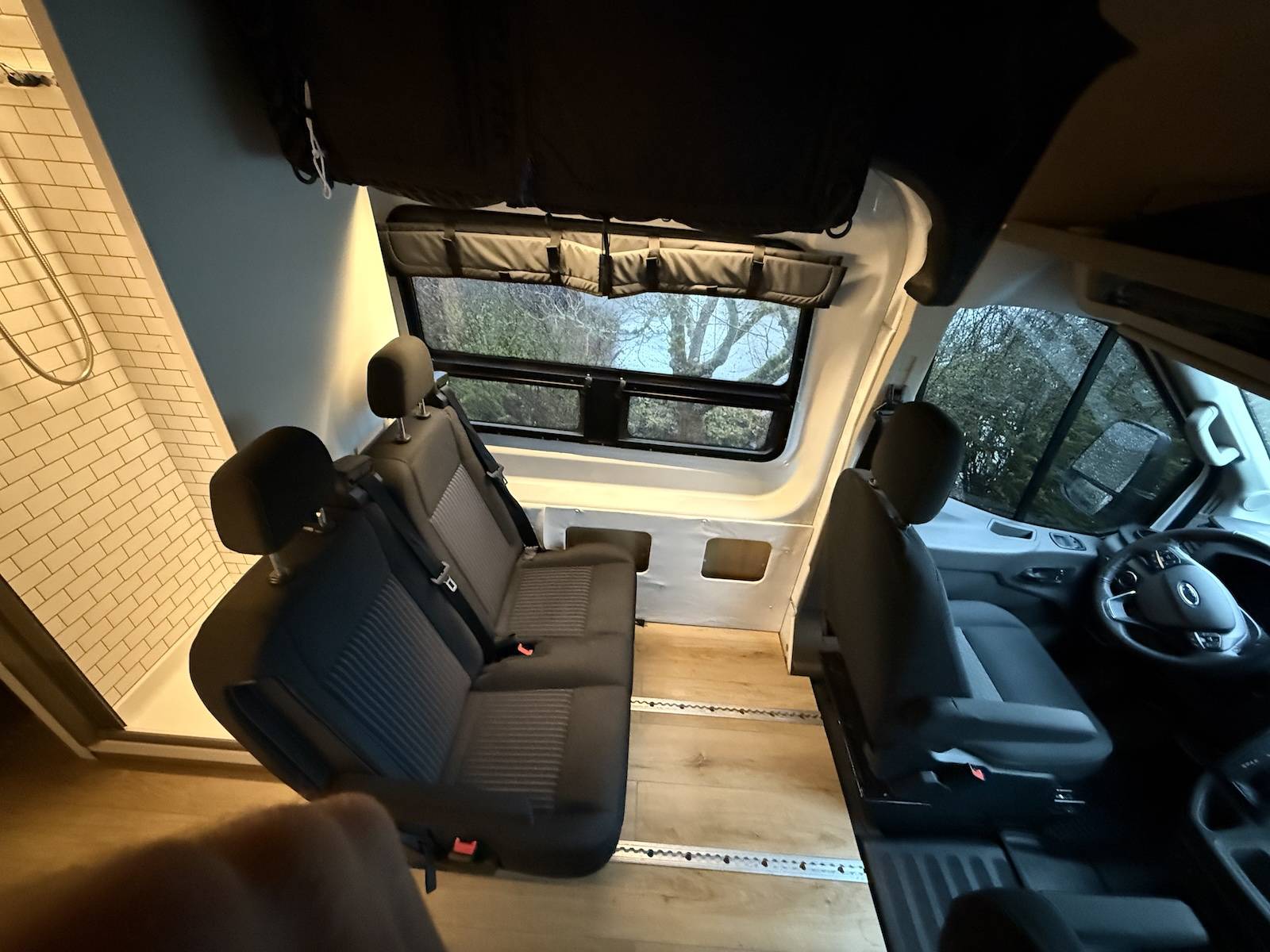

- 4-passenger capacity with swiveling front power seats and removable/adjustable forward/backward factory 2-seat rear bench (Unwin/BraunAbility Seat Lockers on L-Track)

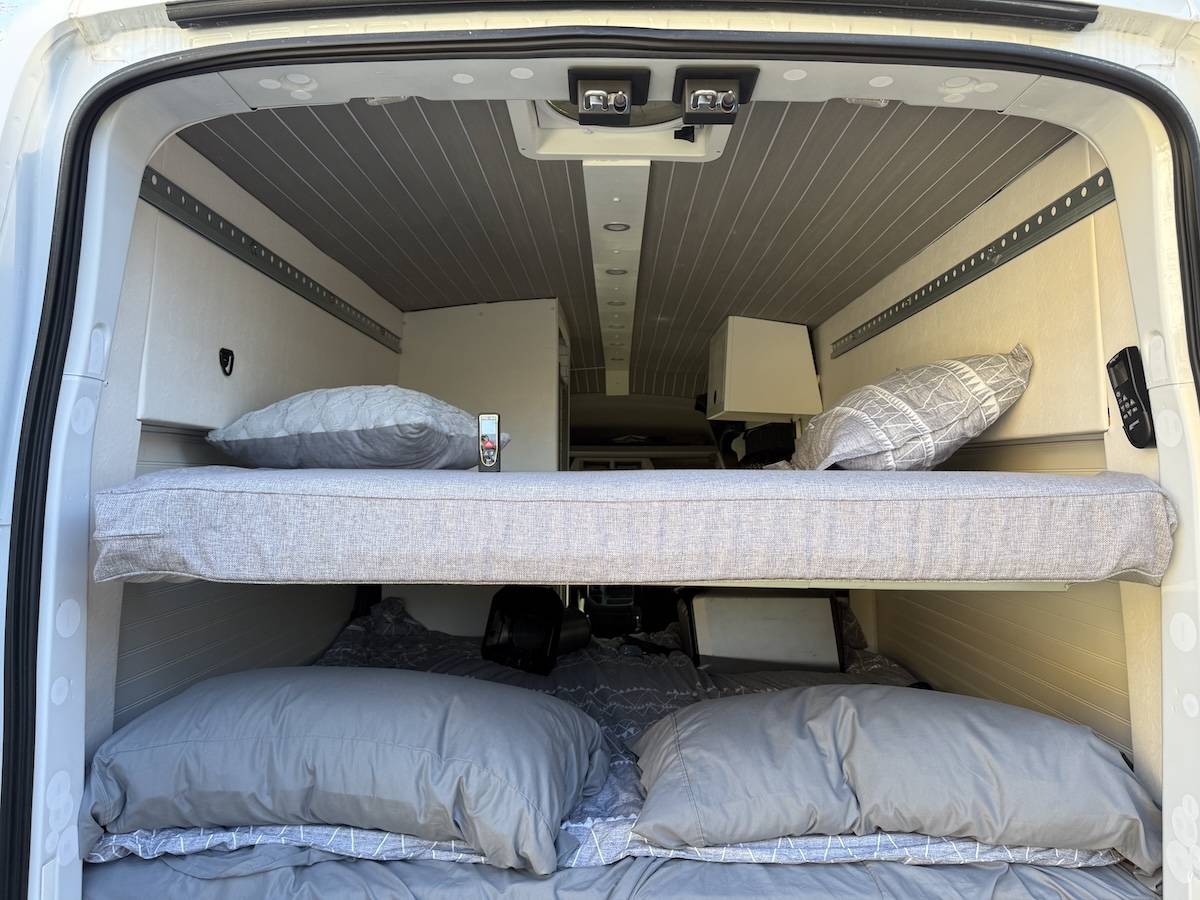

- Primary bed: Sets up in 1 minute using memory foam couch cushions and roll-out slats stowed on top of the water tank in the passenger side rear bean

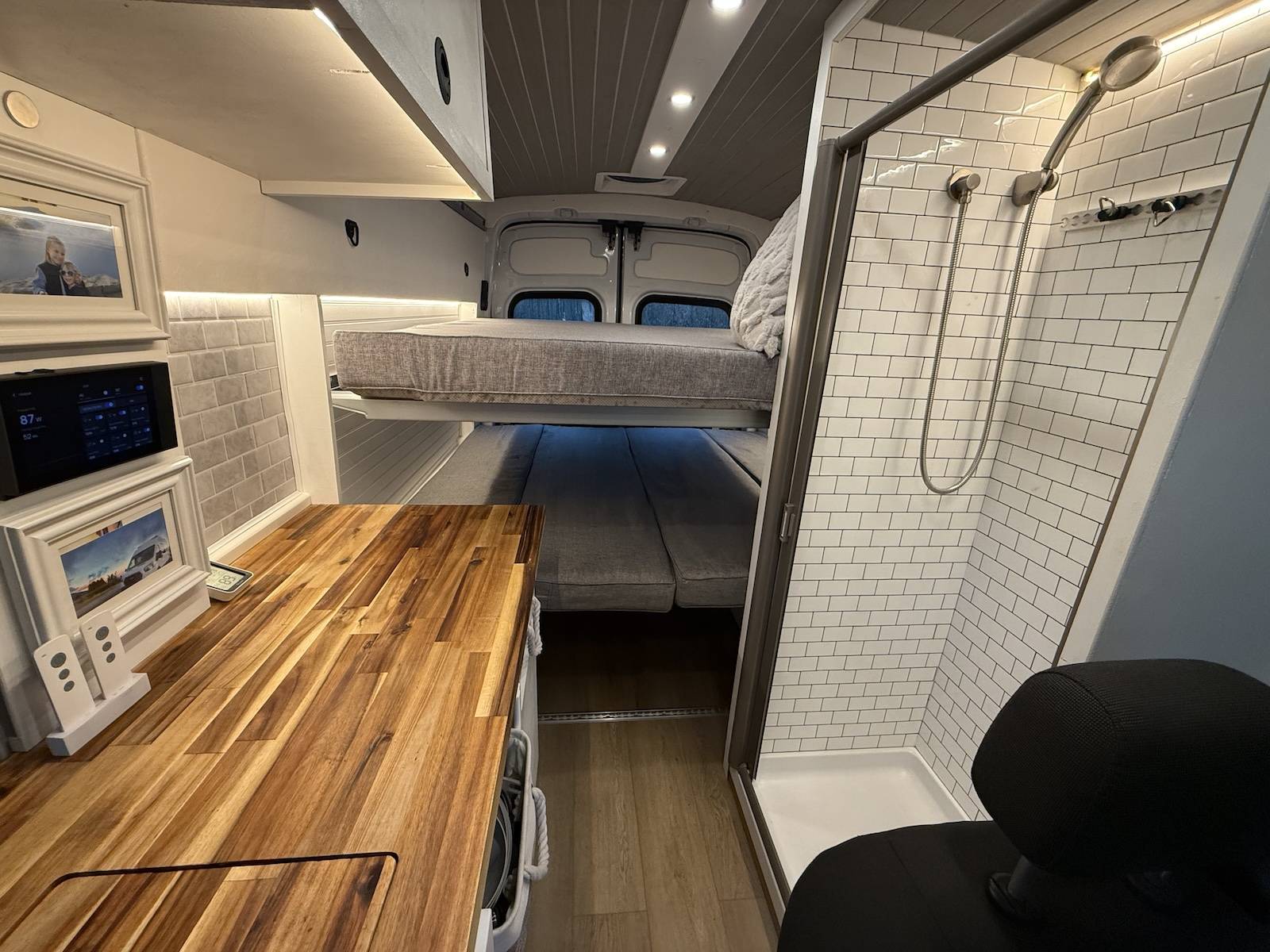

- Secondary bunk bed: Mounts to roof for storage/drops down with 4 crossbars, removable for extra space. You will see two sets of rails one high (storage position), one low (second bed position). With an assistant you can raise/lower this or remove it in 2-3 minutes. If you don’t need this second bed, the rails could easily be removed and holes plugged.
- Hybrid sleeping arrangement: Sleeps 1–5, with room for an additional person in the garage area under the other beds
- Interior & Comfort:
- 3M Thinsulate insulation, Siless 80 mil sound deadening throughout all voice surfaces and roof, with 1” foam floor and marine decking foam in the roof for a quiet, SUV-like ride
- Custom upholstery cushions for rear seating and bed (these are used for the lower bed)
- High-quality all-weather floor mats in the front and L-Track throughout for versatile mounting solutions throughout
- Kitchen & Shower:
- Digital Thermostatic mixing valve for consistent 108°F water (indoor/outdoor shower). Set the temp and the outdoor and indoor shower will require no adjustments.
- NW Conversions 24-gallon fresh water tank (28 gallons with 4-gallon water heater)
- Seaflo 12V 3.0GPM 55PSI pump with accumulator and Uponor/PexA piping (4-season ready). The shower plumbing runs through 1″ foam in the floor.

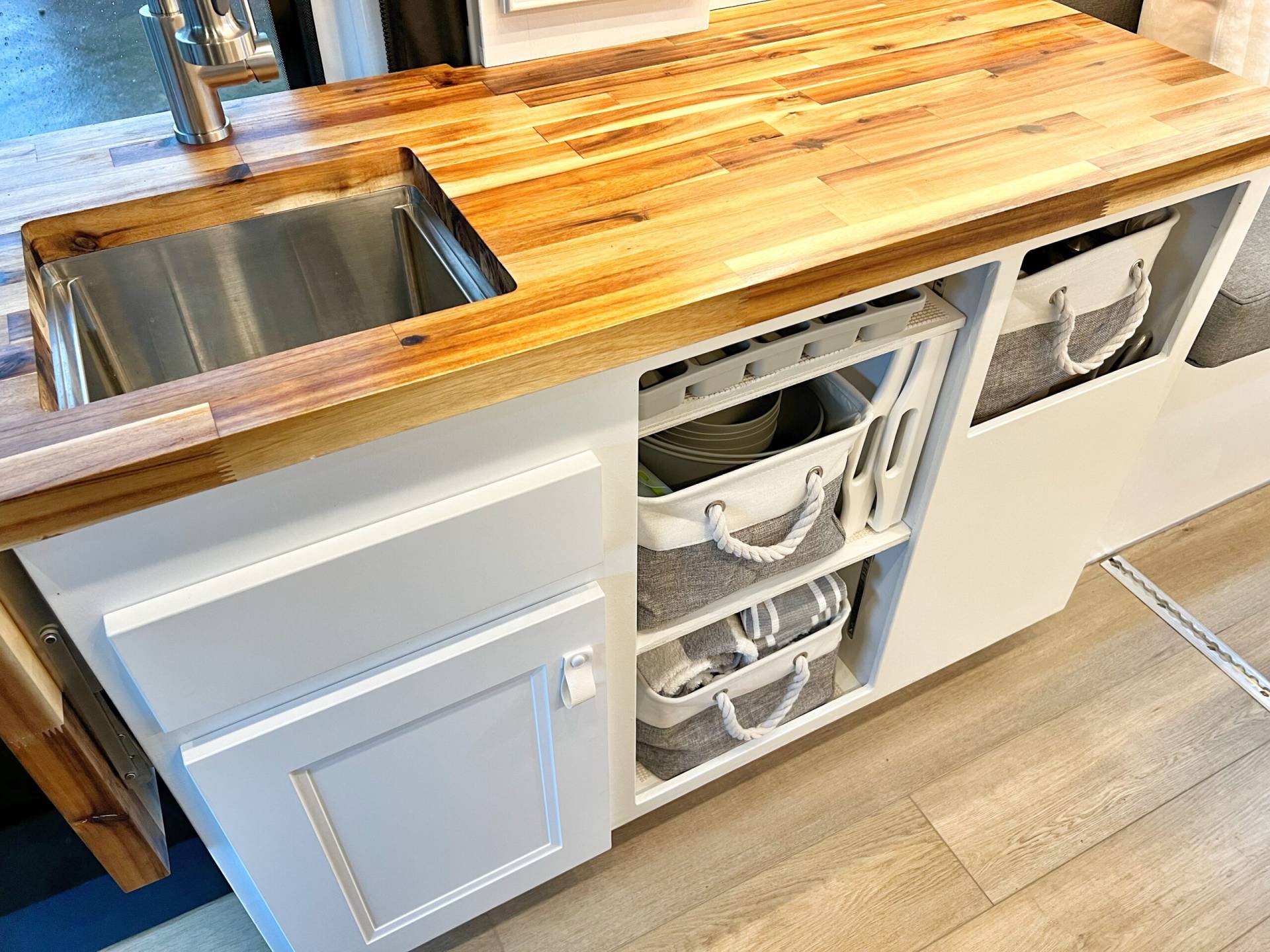

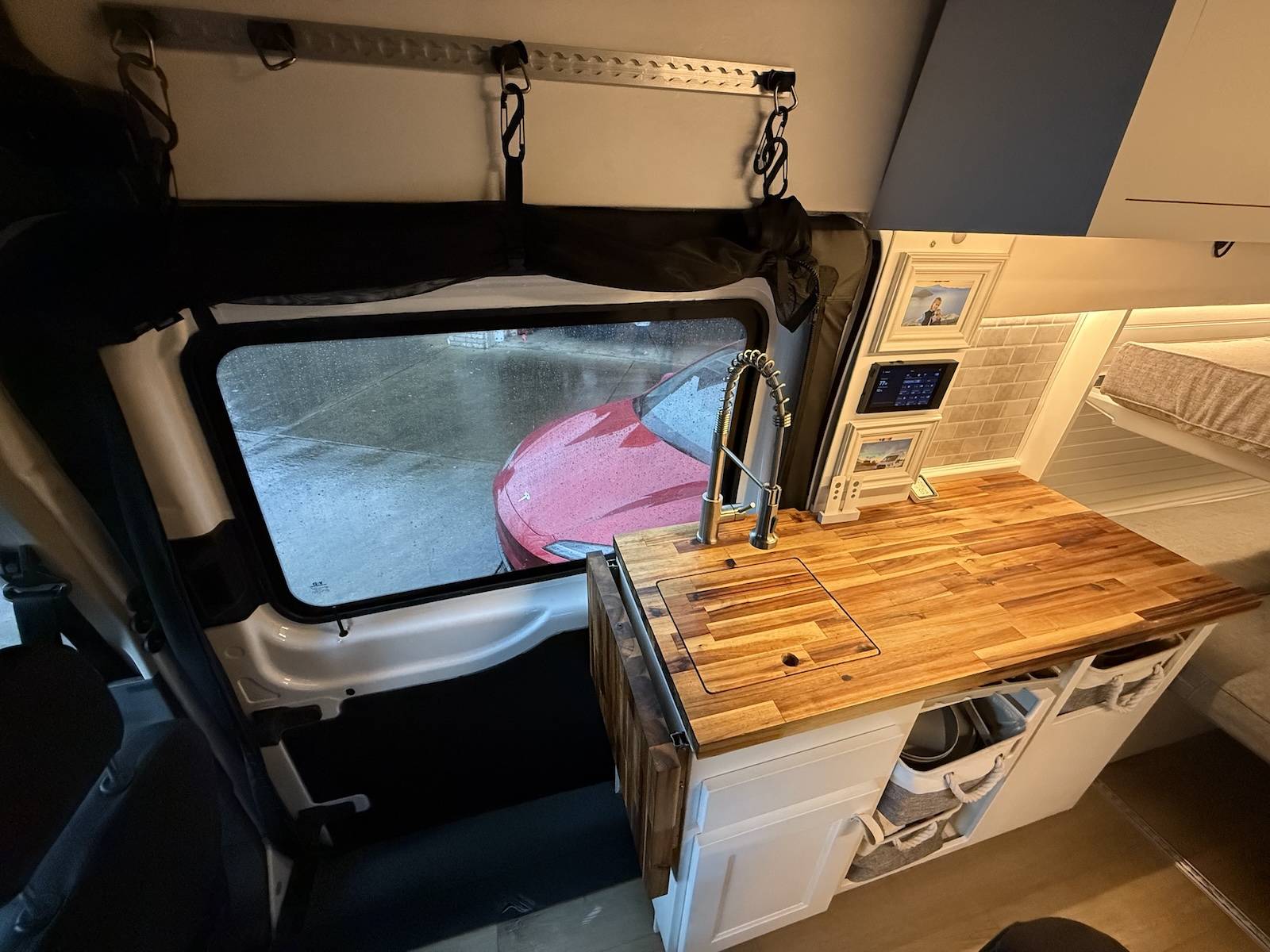

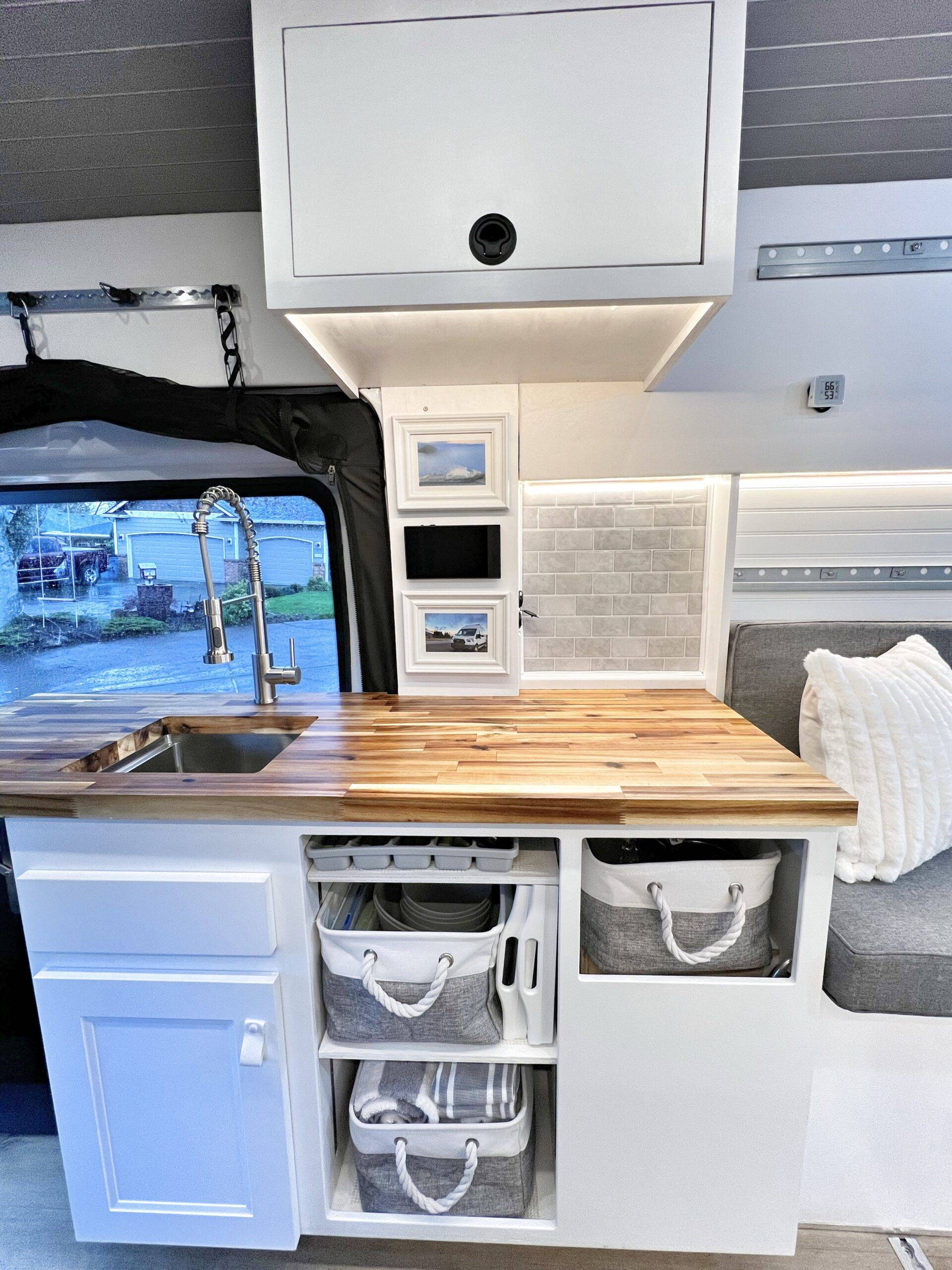

- Butcher block counter with extendable section and sink insert; deep stainless steel sink with pull-out faucet

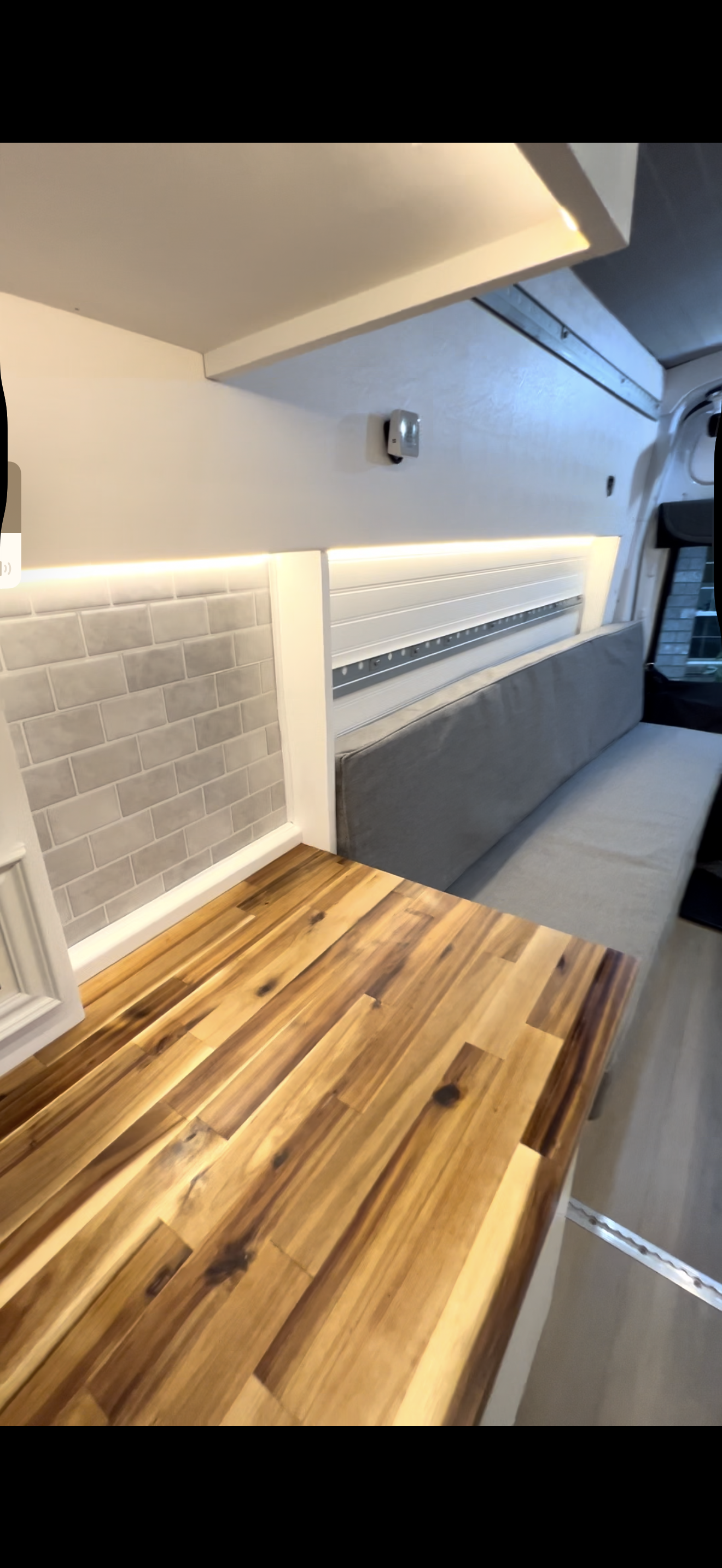

- Custom cabinetry with under-cabinet LED lighting
- NW Conversions 16-gallon gray water tank mounted under the vehicle on the drivers side – catches both sink and shower water
- Power & Technology:
- Ecoflow 5kWh Independence Powerkit (120V/48V/12V) with 8 A/C outlets in all of the important places such as door/sitting areas or anywhere you may want to use an induction cooktop for example, USB-A, high power PD USB-C throughout
- Multiple charging methods: 4,800W max solar (880W via 4 Renogy Bifacial panels on the roof), 1,000W alternator, 3,000W shore power and can be charged by solar and alternator at the same time or any other combination

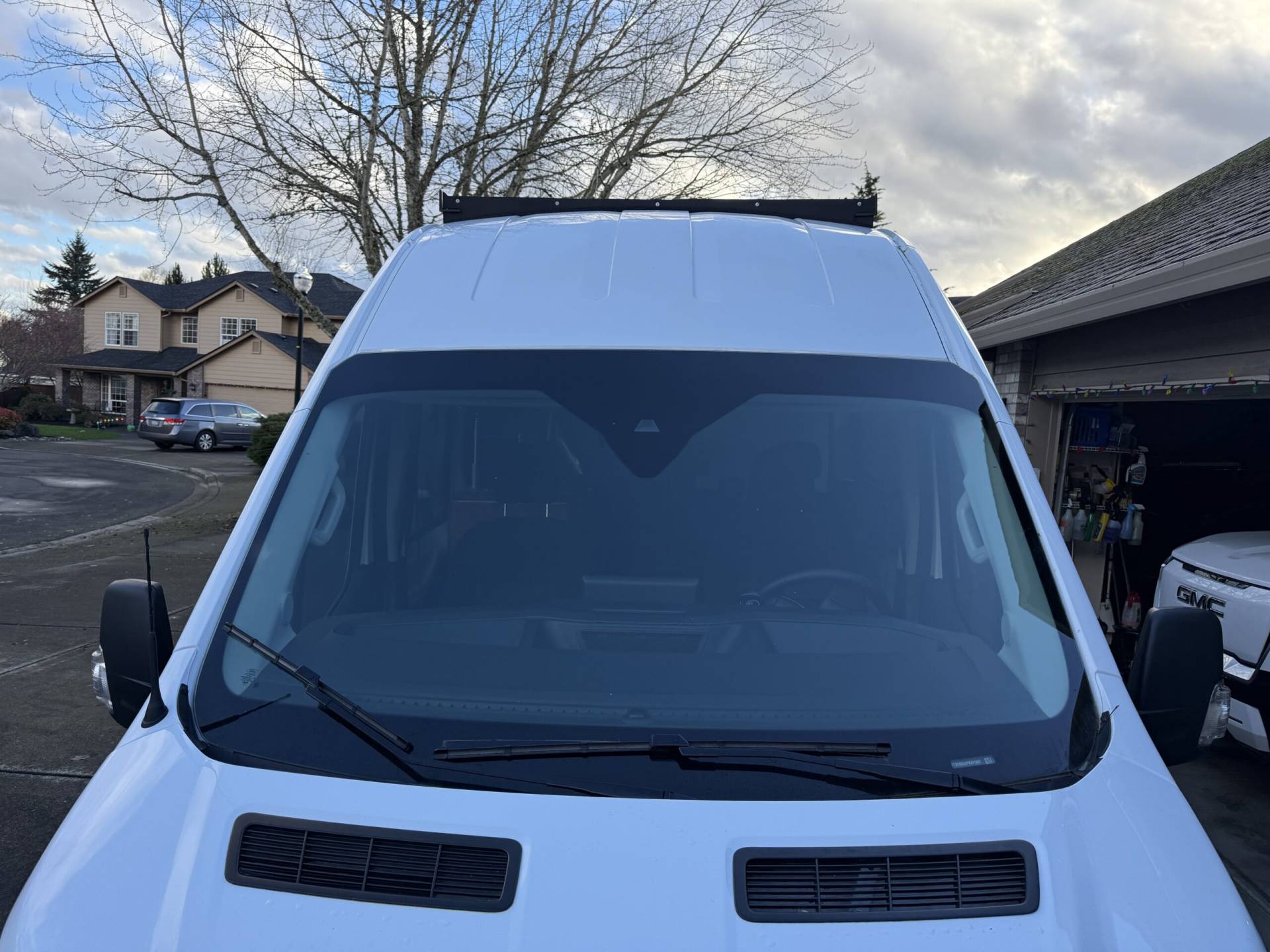

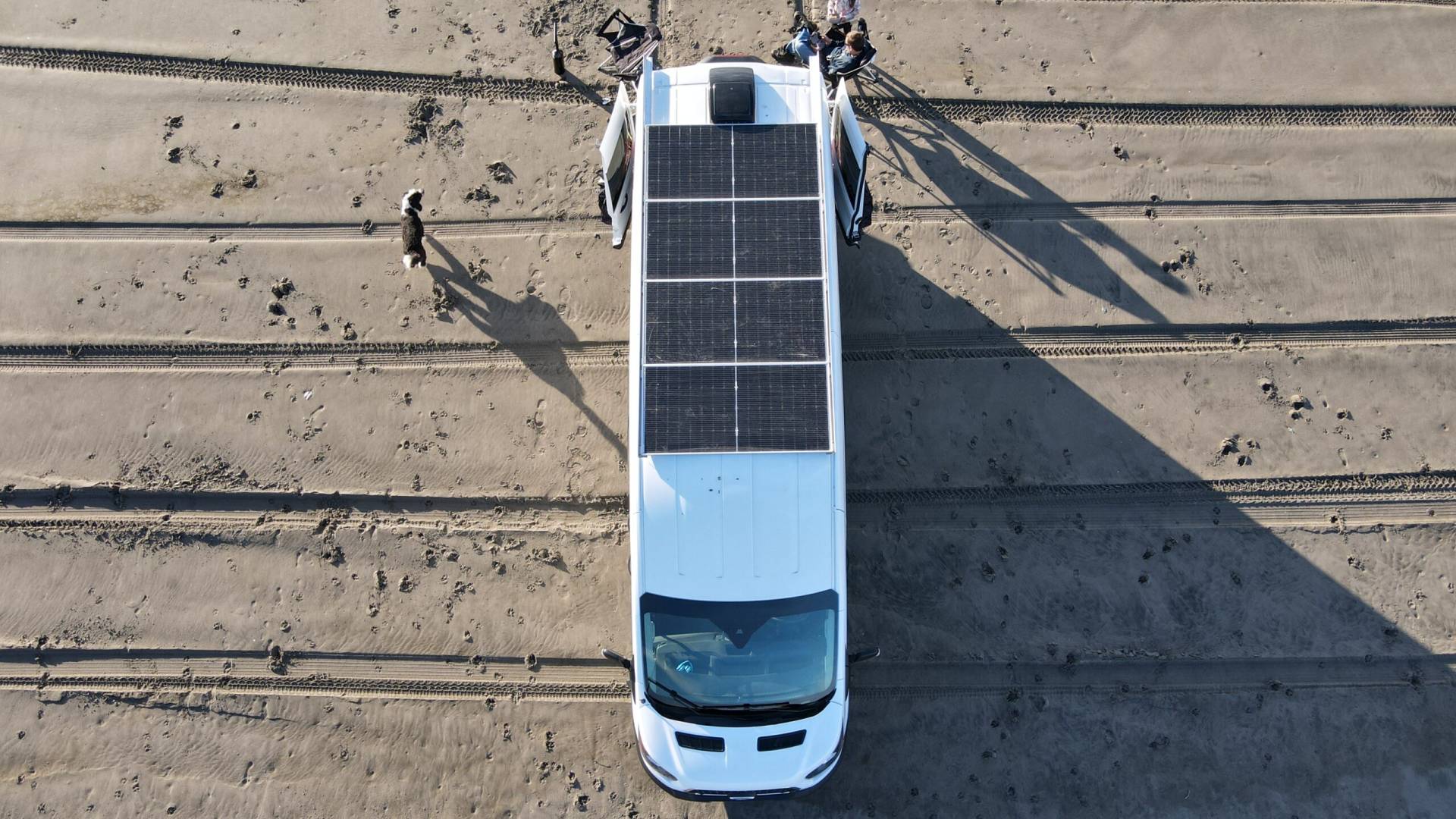

- Custom 3” x 1/4” HD aluminum roof rack with flat black vinyl facing with 880W via 4 Renogy Bifacial panels installed
- 2 Zone LED lighting (including rope under-cabinet lights) with dimmers, controlled via remote, phone, tablet, or wall touchscreen
- 5KW diesel heater with aftermarket thermostat and separate under-van diesel tank – 7ish liter tank would likely provide over 30 hours of heat
- Vizio soundbar with subwoofer for premium audio
- Max Air Fan in rear
- Windows & Doors:
- XPEL Ceramic tinted front windows (high heat rejection)
- CLR rear passenger opening window on the drivers side next to the seat
- Van Essentials window covers (~$1,000 value)
- Custom saddle bags on rear cargo doors
- Van Essentials permanent bug screen with magnetic rear slider door; removable magnetic rear door screen
- Soft hanging storage bag above rear bench (L-Track mounted)
- Suspension & Exterior:
- New 2024 BFGoodrich AT T/A KO2 tires (255/70/16)
- Sumo Springs and factory sway bars for improved handling
- Custom Raptor Grill with LED lights
- Measurements
- Floor to ceiling 6’ 4″
- Garage floor to 1st bed 1’11”
- First bed to lower beams of upper bed 1’6”
- Upper bed to ceiling 2’2”
All the measurements taken in the worst/smallest ways – meaning on the tightest members and with sheets on, I also had my daughter lay in there, she’s 9 for reference to get an idea on space.
FAQ
Cooking: We used a portable high performance 120V 2-burner induction cooktop (boils water in ~45 seconds). 8 AC outlets (including one on the counter) support indoor/outdoor cooking, with an extension cord for picnic table use. The Ecoflow system handles extended cooking sessions.
Toilet: We used a Trelino urine-diverting toilet in the shower for emergencies, with removable containers for easy disposal.
Refrigerator: We used a portable Anker Everfrost battery-powered/plug-in fridge, mountable behind the rear seat or elsewhere via L-Track. Stays cold for up to 3 days when unplugged, ideal for campground use.
Air Conditioning: The Van A/C works well for keeping the entire vehicle cool when running/driving due to the well insulated nature of the build. There is no permanent A/C. Instead, we rely on a Max-Air Roof fan and an Ecoflow WAVE2 when needed. It sits in the area of the rear seat with the ducting running outside the vented CLR rear passenger opening window. Excessive heat has never been an issue for us living/traveling in the PNW. The Ecoflow Powerkit does support 48V for an in roof option and there are some newer 12V heat pump options that would replace the roof fan if you’d like to adapt either option.
It’s challenging to find a van with a better thought-out layout. We’ve maximized space and overall functionality in what we have created.
